Italian SOMAUT printing machine series

PNEUMATIC MARKING

Product description:

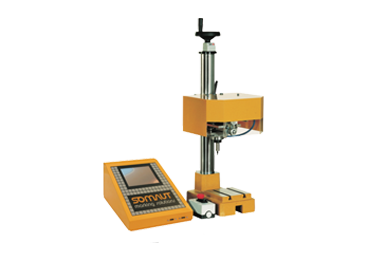

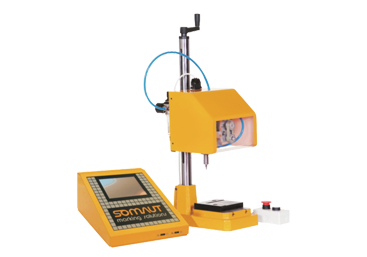

neumatic Marking Marking machine with hard metal stylus moved by XY axes systems with stepper motor.Control unit for marking cycles as well as the control of the marking unit.An interface consisting of a comfortable 8’color touch-screen display with an icon-based user friendly program.Remote control to start marking or for emergency stop. Air regulator with air filter.

Total weight：S33: 50 kg / S33S: 25kg / S33L: 70kg / S33XL: 80kg.
Manual Z axis with handwheel
Working surface with standard base：S33/ S33S 160 x 160 mm, S33L/S33XL 220x220mm
Power supply：100÷240V;50÷60Hz Air supply: Max. 6 bar
Marking area：S33 :100×80mm / S33S :160x160mm / S33L :180x180mm / S33XL :200x200mm
Type size to be freely determined
8 different series of alphanumeric characters and matrix symbols
Date and time functions controls
Linear, tilted, circular and mirror markings Sequential numbering
Control protocol available with both serial and Ethernet ports
Two USB slots for improved flexibility of use: data transfers, storing and retrieving, peripherals.
Assisted diagnostics
Working temperatures: -10 – 40℃o, humidity 10 - 85 % non-condensin
